Demonstrating the thermal noise limit in a backaction-free bulk acoustic wave resonator chain for gravitational wave detection

Author(s)

Albani, G., Borghesi, M., Canonica, L., Carobene, R., De Guio, F., Faverzani, M., Ferreiro Iachellini, N., Ferri, E., Gerosa, R., Ghezzi, A., Giachero, A., Labranca, D., Mariani, L., Maifredi, R., Nucciotti, A., Rozza, D., de Fatis, T. Tabarelli

Abstract

We report the full sub-Kelvin characterization of the BAUSCIA high-frequency gravitational-wave antenna, based on cryogenic Bulk Acoustic Wave resonators coupled to SQUID amplifiers for signal readout. The end-to-end performance analysis of the experimental chain, from the sensor to the DAQ, demonstrates that resonator thermal noise dominates the noise budget at temperatures well below 100 mK for all investigated modes. The measurements also verify proper thermalization of the resonator modes and rule out significant SQUID backaction on the strain sensor, confirming that the system operates close to its fundamental limits with comparable resonator thermal noise and additive readout noise. From this characterization, we derive projected strain sensitivities in the range $1$--$10 \times 10^{-21}\,\mathrm{Hz}^{-1/2}$ for several resonant frequencies between 5 and 20~MHz, with corresponding fundamental thermal limits in the range $0.7$--$1.4 \times 10^{-21}\,\mathrm{Hz}^{-1/2}$. Equipped with three resonators and synchronized to an absolute global time reference for multi-site coincidences, the antenna is ready to enter a pilot science run.

Figures

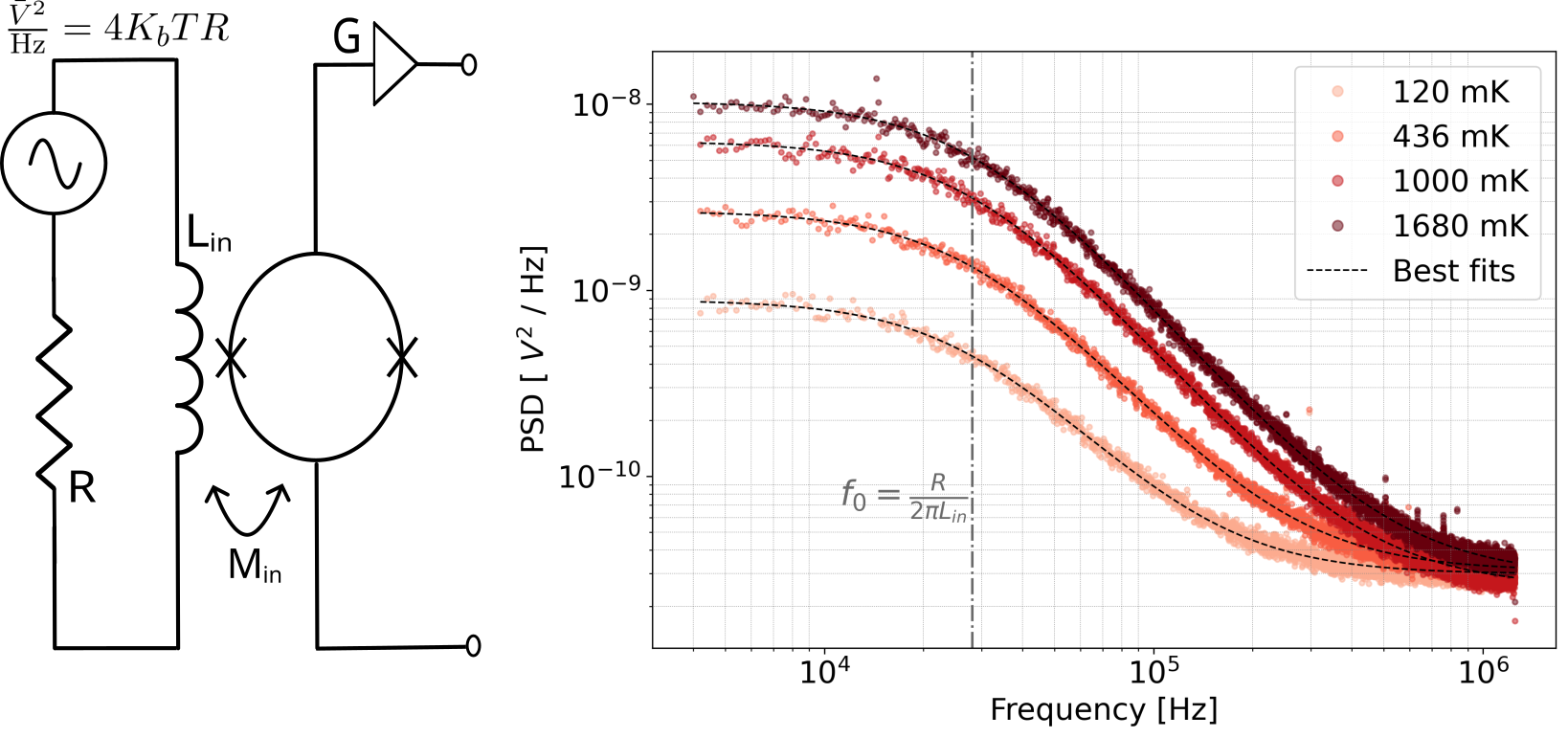

\textbf{Left:} Electrical equivalent representation of the setup used for squid calibration: $\bar{V}^2 / \Delta f = 4 k_B T R$ is the Johnson-Nyquist noise of the input resistor. \textbf{Right:} Measured voltage \gls{psd} of the resistor's noise alongside best-fit curves using Eq.~\eqref{eq:RL_psd}. The corner frequency $f_0$ directly constrains the SQUID input inductance $L_{\text{in}}$.
Caption \textbf{Left:} Electrical equivalent representation of the setup used for squid calibration: $\bar{V}^2 / \Delta f = 4 k_B T R$ is the Johnson-Nyquist noise of the input resistor. \textbf{Right:} Measured voltage \gls{psd} of the resistor's noise alongside best-fit curves using Eq.~\eqref{eq:RL_psd}. The corner frequency $f_0$ directly constrains the SQUID input inductance $L_{\text{in}}$.

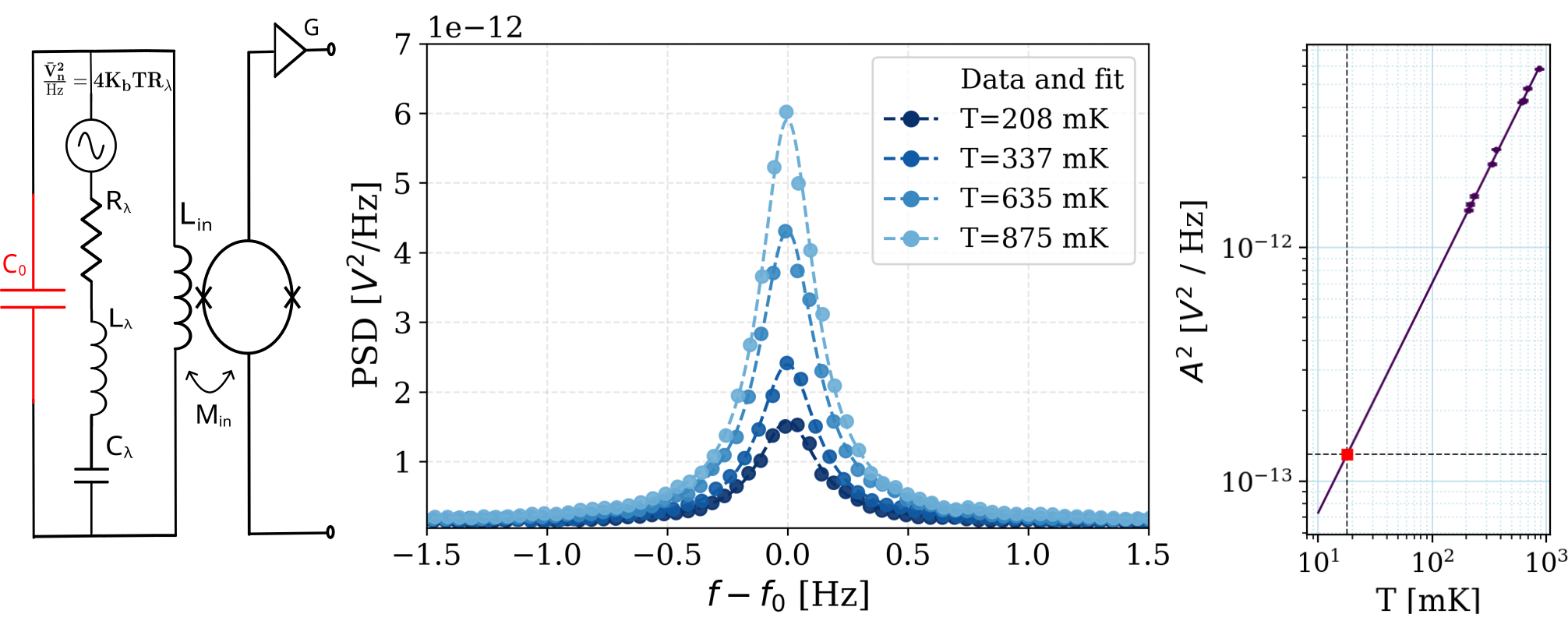

\textbf{Left:} Electrical equivalent circuit of a single BAW acoustic mode coupled to the DC SQUID input circuit. The voltage generator $4 k_B T R_{\lambda}$ models the thermal noise of the motional resistance $R_{\lambda}$. \textbf{Centre:} Measured voltage noise PSD of the 3B mode ($f_{\lambda} = 5.689\text{ MHz}$) at four distinct cryostat temperatures, along with Lorentzian best fits (dashed lines). \textbf{Right:} Extrapolation of the Lorentzian peak power spectral density ($A^2$) versus bath temperature $T_{\text{bath}}$, highlighting the threshold temperature $T_{\text{min}} \sim 18\text{ mK}$ where the thermal noise equals the additive readout noise for the 3B mode.
Caption \textbf{Left:} Electrical equivalent circuit of a single BAW acoustic mode coupled to the DC SQUID input circuit. The voltage generator $4 k_B T R_{\lambda}$ models the thermal noise of the motional resistance $R_{\lambda}$. \textbf{Centre:} Measured voltage noise PSD of the 3B mode ($f_{\lambda} = 5.689\text{ MHz}$) at four distinct cryostat temperatures, along with Lorentzian best fits (dashed lines). \textbf{Right:} Extrapolation of the Lorentzian peak power spectral density ($A^2$) versus bath temperature $T_{\text{bath}}$, highlighting the threshold temperature $T_{\text{min}} \sim 18\text{ mK}$ where the thermal noise equals the additive readout noise for the 3B mode.

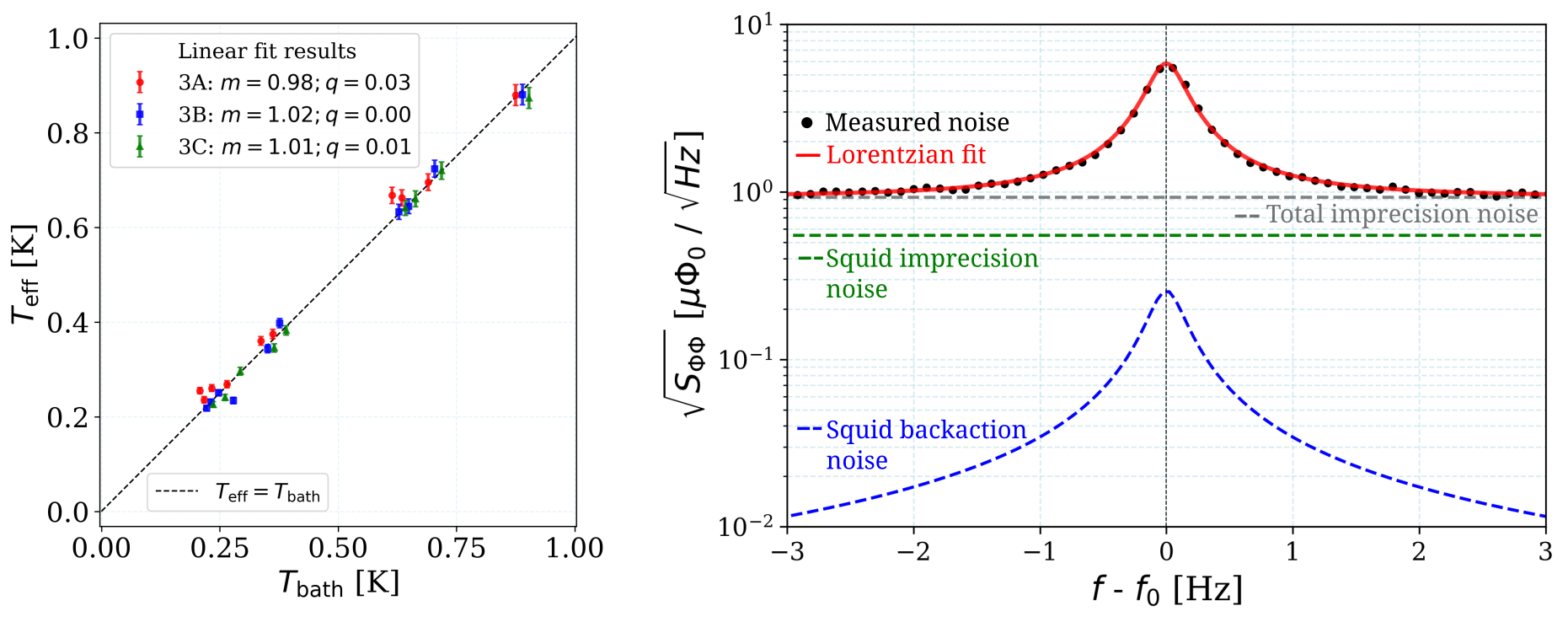

\textbf{Left:} Mode effective temperature $T_{\text{eff}}$ as a function of the cryostat bath temperature $T_{\text{bath}}$ for the $n=3$ harmonic family. The dashed diagonal represents thermal equilibrium ($T_{\text{eff}} = T_{\text{bath}}$); linear fits confirm unity slopes within uncertainties, demonstrating complete mode thermalization and negligible backaction. (Data points for 3B and 3C are horizontally offset by $+15\text{ mK}$ and $+30\text{ mK}$ for visual clarity.) \textbf{Right:} Input-referred flux noise spectrum $\sqrt{S_{\Phi\Phi}}$ around the 3B mode resonance, comparing experimental data (black points) against the Lorentzian fit (red line), total imprecision noise floor (gray line), and the theoretical SQUID backaction contribution calculated via Tesche-Clarke theory (blue dashed line).
Caption \textbf{Left:} Mode effective temperature $T_{\text{eff}}$ as a function of the cryostat bath temperature $T_{\text{bath}}$ for the $n=3$ harmonic family. The dashed diagonal represents thermal equilibrium ($T_{\text{eff}} = T_{\text{bath}}$); linear fits confirm unity slopes within uncertainties, demonstrating complete mode thermalization and negligible backaction. (Data points for 3B and 3C are horizontally offset by $+15\text{ mK}$ and $+30\text{ mK}$ for visual clarity.) \textbf{Right:} Input-referred flux noise spectrum $\sqrt{S_{\Phi\Phi}}$ around the 3B mode resonance, comparing experimental data (black points) against the Lorentzian fit (red line), total imprecision noise floor (gray line), and the theoretical SQUID backaction contribution calculated via Tesche-Clarke theory (blue dashed line).

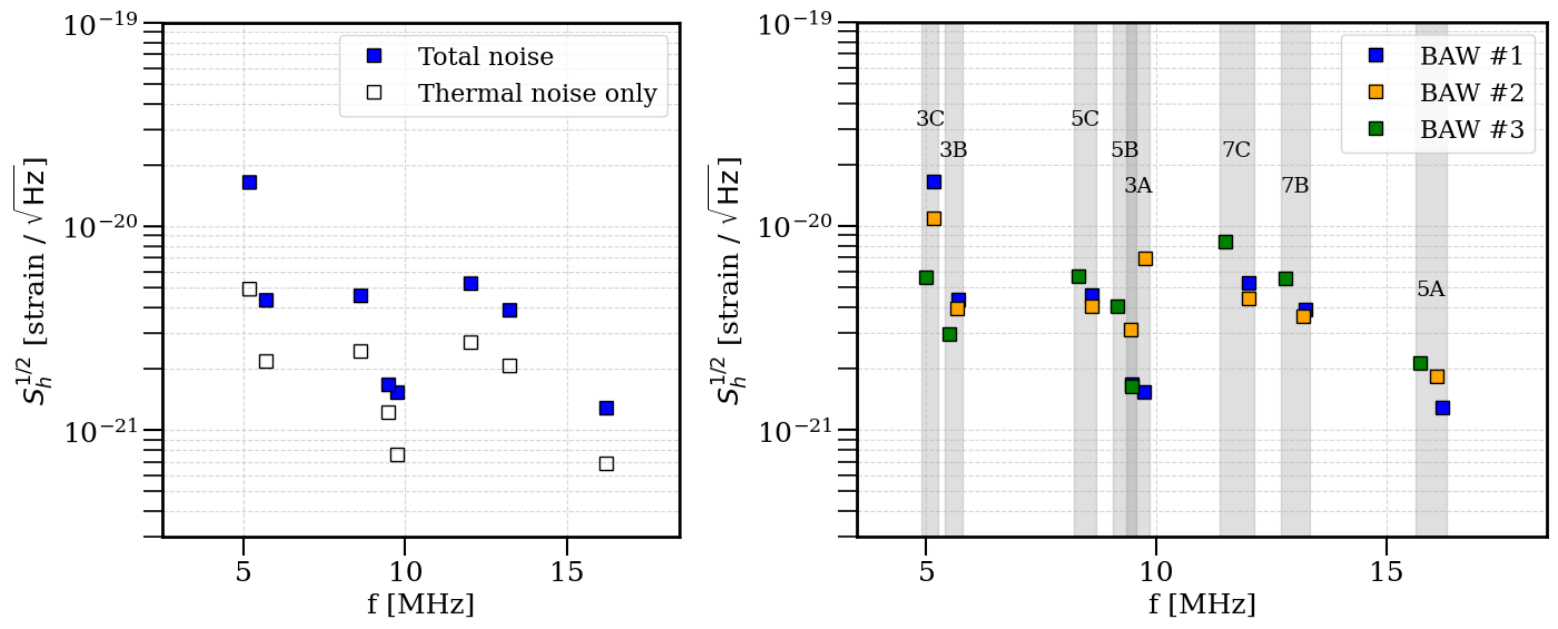

\textbf{Left:} Projected single-tone strain sensitivity at $T_{\text{ref}} = 20$ mK of the prototype BAUSCIA channel measured in this work. Filled markers indicate the estimates based on the total measured noise, whereas open markers indicate the thermal limit set by the resonator thermal noise. \textbf{Right:} Projected single-tone strain sensitivities of the BAUSCIA array equipped with three prototype BAW resonators at a reference temperature $T_{\text{ref}} = 20\text{ mK}$. Grey shaded areas indicate the different monitored BAW modes of the three resonators, with each mode labelled by its overtone number and mode family.
Caption \textbf{Left:} Projected single-tone strain sensitivity at $T_{\text{ref}} = 20$ mK of the prototype BAUSCIA channel measured in this work. Filled markers indicate the estimates based on the total measured noise, whereas open markers indicate the thermal limit set by the resonator thermal noise. \textbf{Right:} Projected single-tone strain sensitivities of the BAUSCIA array equipped with three prototype BAW resonators at a reference temperature $T_{\text{ref}} = 20\text{ mK}$. Grey shaded areas indicate the different monitored BAW modes of the three resonators, with each mode labelled by its overtone number and mode family.
